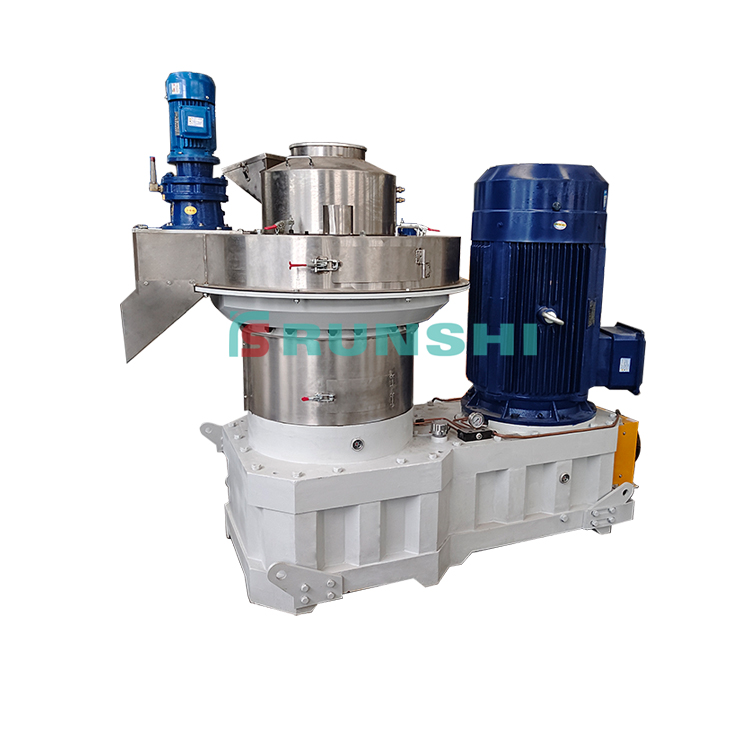

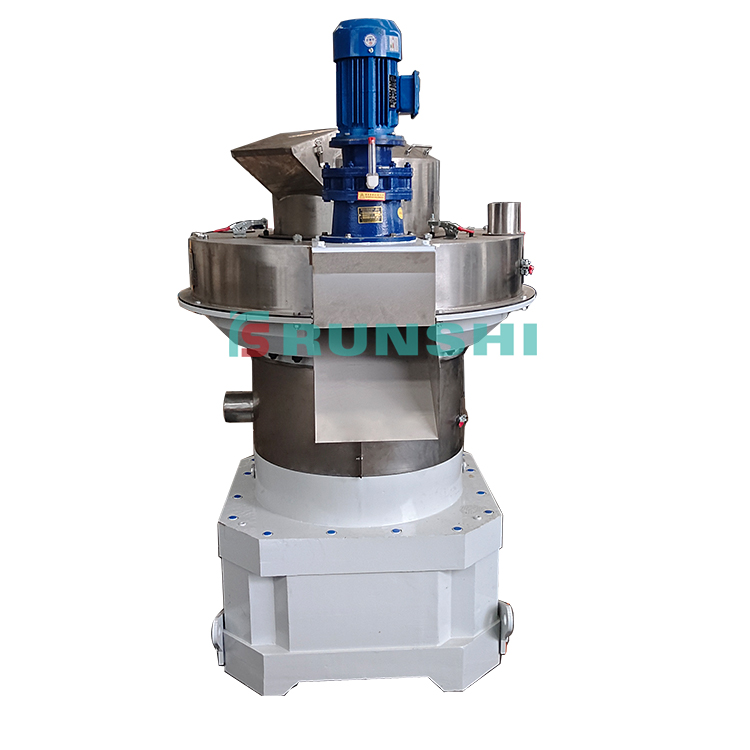

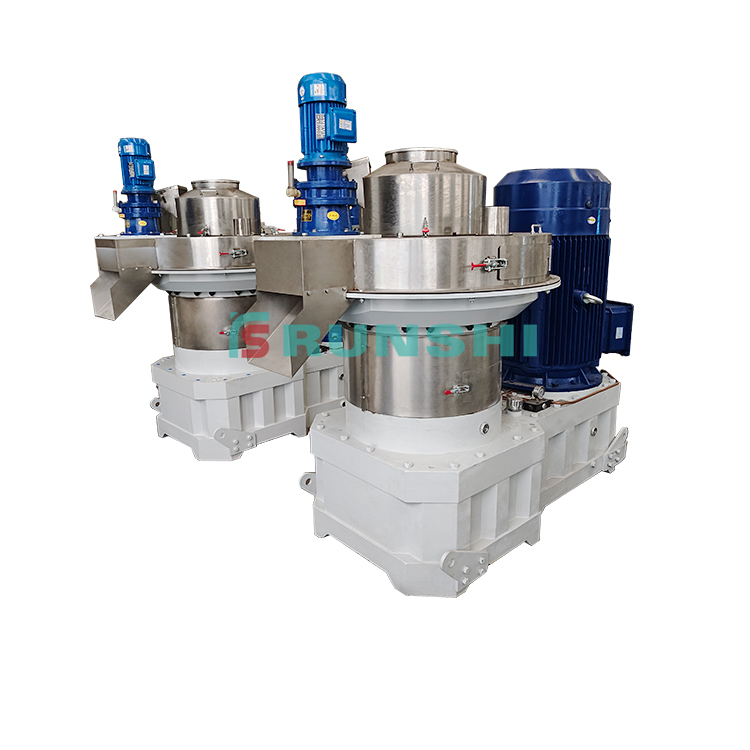

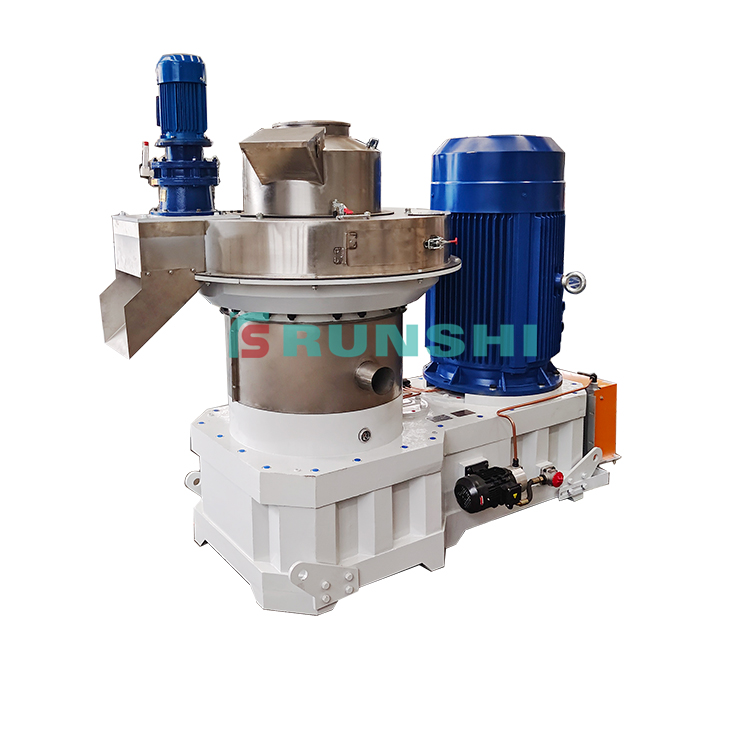

Application Areas： Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses biomass such as wood chips, straw, rice husks, bark and other wastes from agricultural and forestry processing as raw materials, and solidifies it into high-density pellet fuel through pretreatment and processing
Biomass pellet machine is mainly use to press crushed biomass material into round pellet shape,pellet can be used for pellet stove, boiler,pellet burner,power plant,etc.Biomass pellet machine transfer the biomass waste to biomass fuel,it can instead the coal as new and clean energy.Pellet diameter can be 6-12mm,which is the popular size in the market.
1.Adopt Reducer transmission mode,reducer adopt parallel shaft design reducer can use more long time,save motor power and has more big torque,output force more stable,more easy to maintenance,whole machine with overload protect,it is easy to operate and save energy.
2.Mold and roller assembly can use around 1000ton,so save the maintenance cost.
3.Adapt to material with moisture around 15%, material size can be less than 2cm,better for straw type material press briquette.

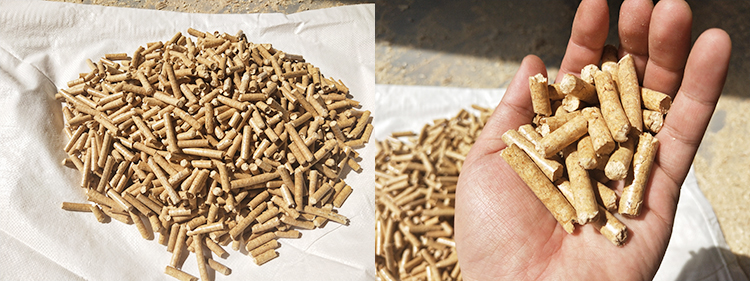

4.Finished pellet can be 6-12mm,length 2-5cm which is suitable for the boiler to burn.
Sawdust,straw,rice husk,coffee husk,olive husk,food waste,kitchen waste,coconut shell,carbon black,efb,waste paper,waste plastic,waste cloth,RDF waste,and other agriculture waste.
Model | Main Power(kw) | Capacity(t/h) | Dimension(mm) |
RSKJ470 | 55+0.75+0.37+1.5 | 0.6-0.9 | 2200*1000*2000 |
RSKJ560A | 90+1.5+0.37+1.5 | 1-1.5 | 2600*1300*2300 |
RSKJ560B | 132+0.75+0.55+1.5 | 1.5-2 | 2300*1300*1600 |
RSKJ700 | (132+1.1)+2.2+1.5+0.37+0.75 | 2-2.5 | 2400*1400*1800 |
RSKJ700 | (160+2.20+1.5+0.37+0.75 | 2.5-3.5 | 2400*1400*1800 |
RSKJ850 | (250+1.1)+1.55+0.55+2.2 | 3-4 | 3800*1830*3080 |
